Features
Discover the key capabilities that make the Lithium 3600 a dependable backup and off-grid power solution.
Robust Energy Solution
Delivers 3600W of reliable power for home backup, RVs, off-grid setups, and outdoor use.
Advanced LiFePO4 Battery Chemistry
Its 3072Wh LiFePO4 battery provides a longer lifespan, improved safety, and stable high-power performance.
Expandable Design
Easily scale your system by adding another Lithium 3600 for 7200W/240V power, or extra battery units for more capacity.

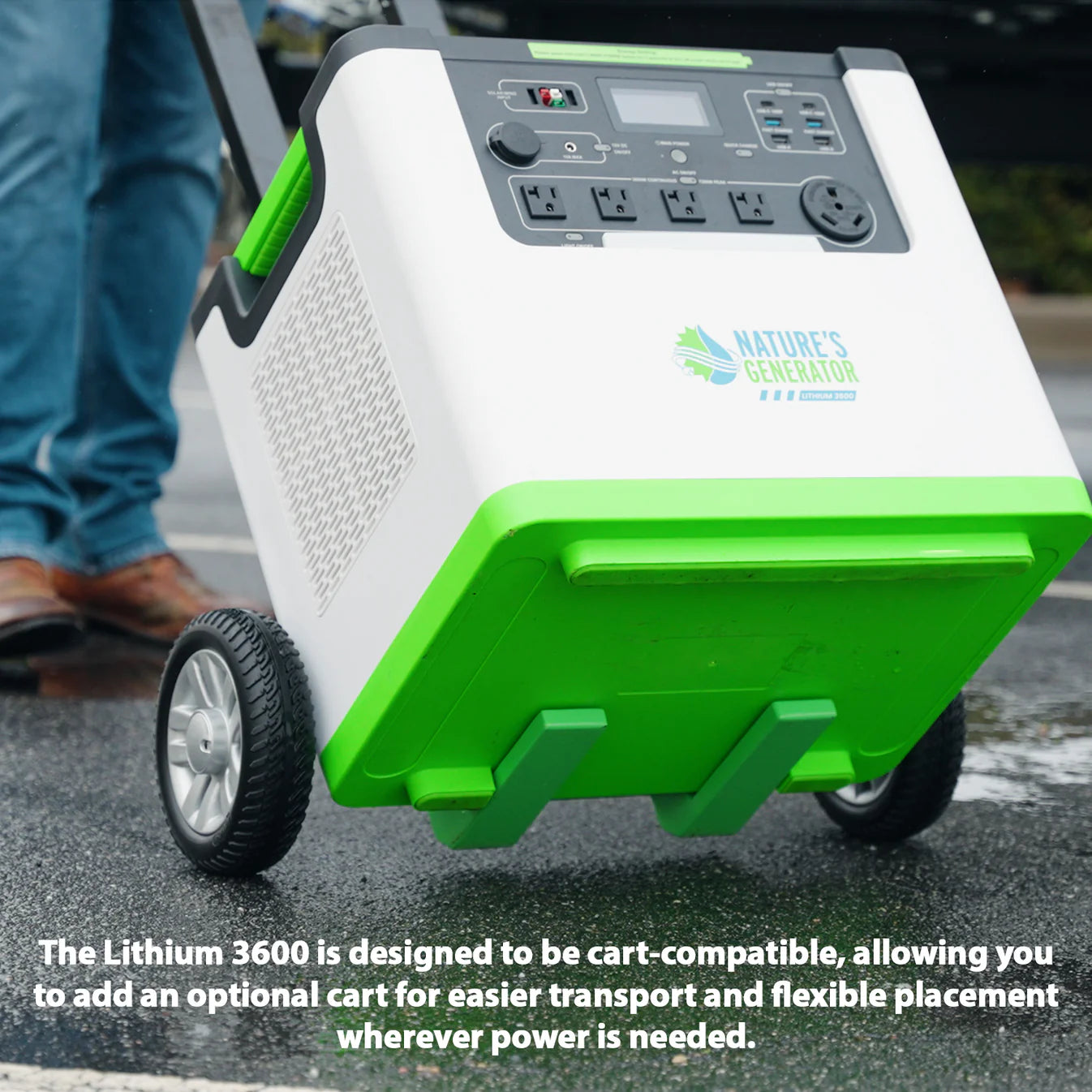

Built for Mobility
A durable, easy-to-move design ensures you can bring dependable power wherever you need it.
Reliable Home Energy, All Day Long
Engineered for whole-home backup, giving you steady, reliable backup when you need it most.
Find all the essential technical details of the Lithium 3600, including power output, capacity, and system specifications.
Inverter
Output Continuous Power3600WExpandable Continuous Peak Power7200W
Output Peak Power7200WExpandable Peak Power14,400W
Output Voltage120V Single Phase
Output Frequency60Hz
WaveformPure Sine Wave
Auto Switch Mode<20ms
Battery
Capacity51.2V 60Ah (3072Wh)
Expandable Capacity18,432Wh (w/ 5x Power Pod)
Cell ChemistryLithium Iron Phosphate (LiFePO4)
Self-DischargeRecharge every 6 months
Life Cycles>70% after 3000 cycles
Charges
Solar Charger2400W
Wind Charger150W (shared port)
AC Charger600W, 1800W, 3000W
Charge ModeMPPT

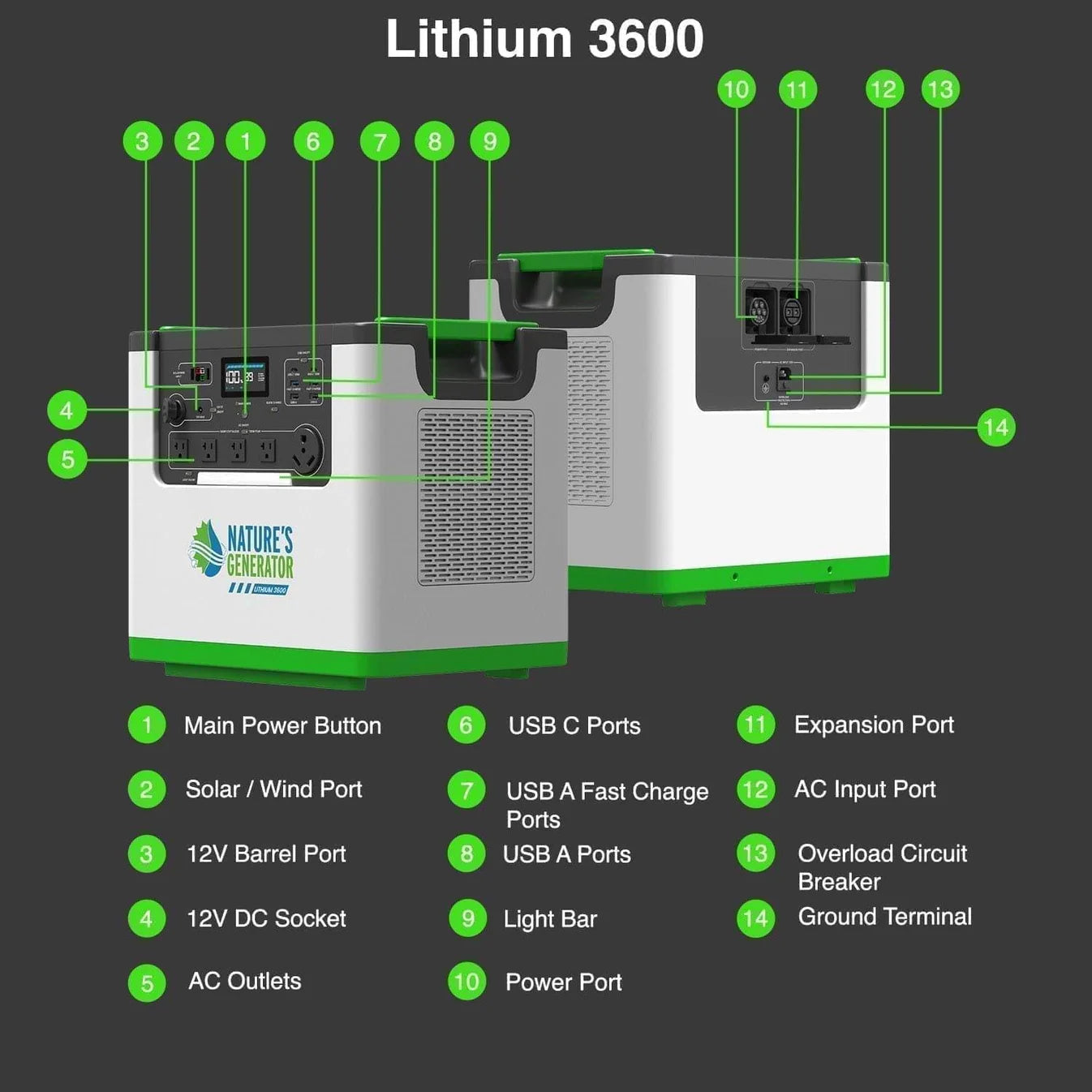

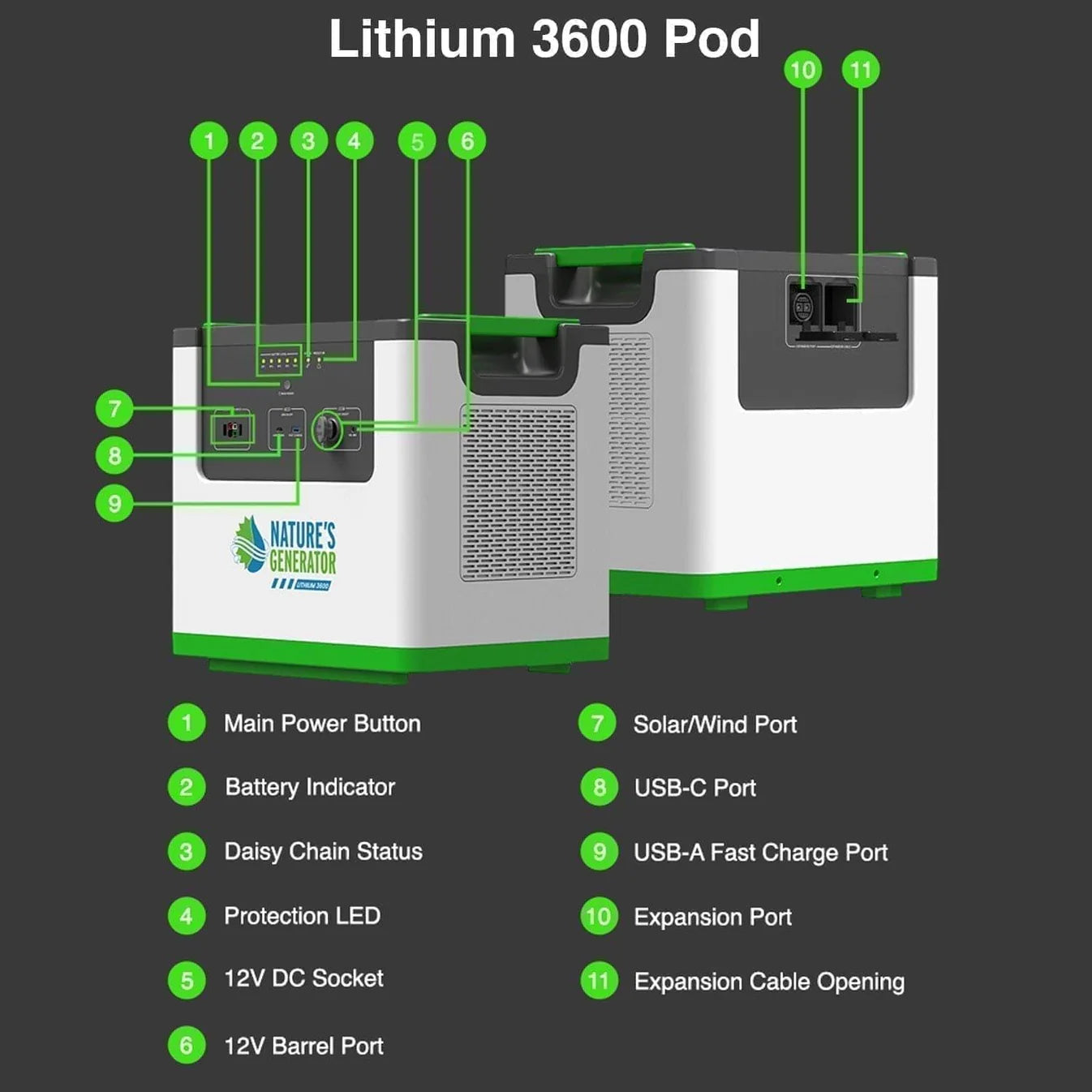

Ports
AC OutletNEMA 5-20R Outlets x4TT-30R Outlet x1
USB & DC ConnectionUSB-A Ports x2: 5V 2.4A 12WUSB-A Fast Charge x2: 60WUSB-C Ports x2: 100WDC Socket: 12V 10A 120WDC Barrel: 12V 10A 120WExpansion Port: Built-in
General
Weight97 lbs (44 kg)

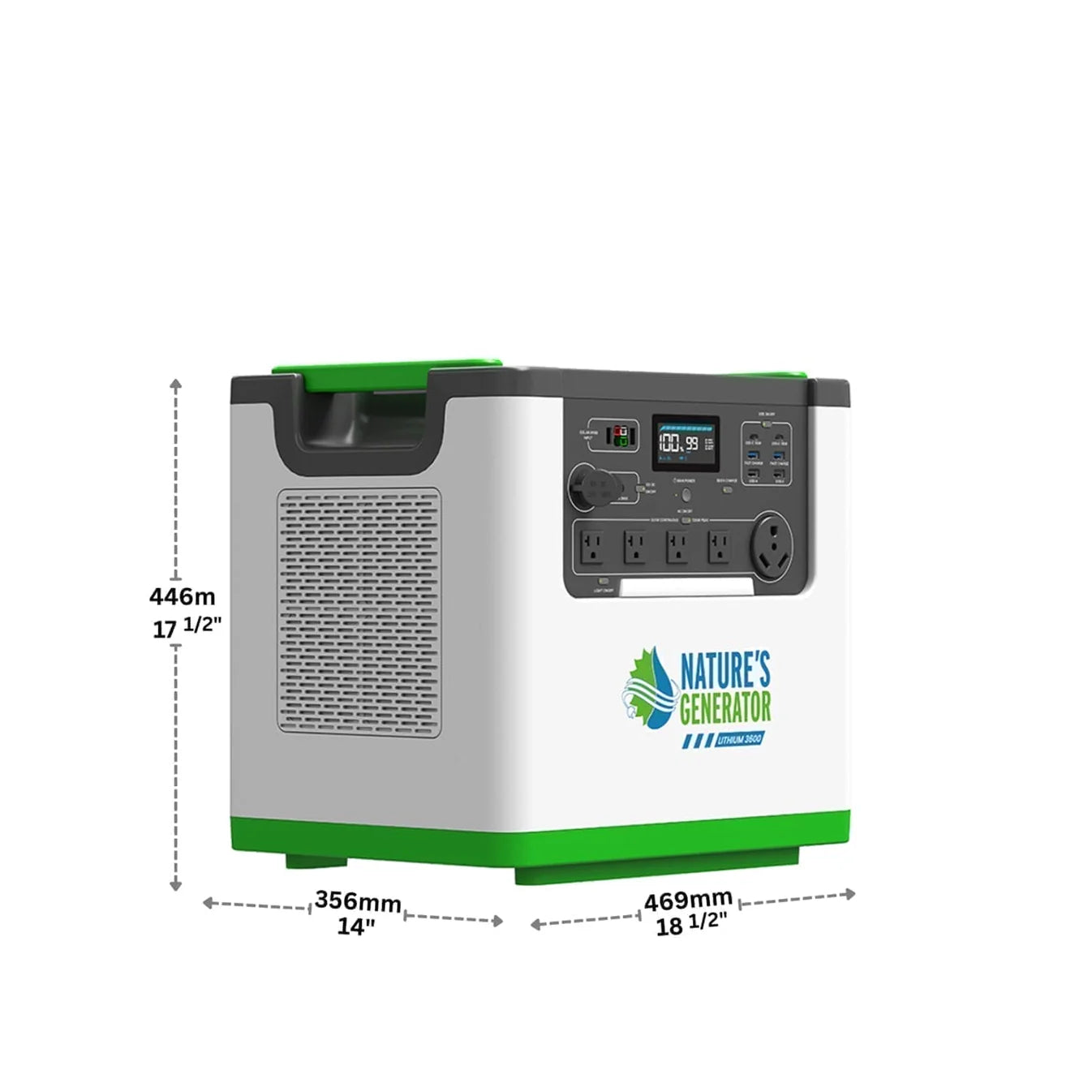

Dimensions18.5 x 14.0 x 17.6 inches
Operating Temperature68 – 86°F (20 – 30°C)
Storage Temperature14 – 113°F (-10 – 45°C)
Discharging Temperature14 – 113°F (-10 – 45°C)
Warranty1-Year Limited Warranty
Life Cycles>3000 cycles
Battery Level Indicator5 LED lights
Weight84 lbs (38 kg)
