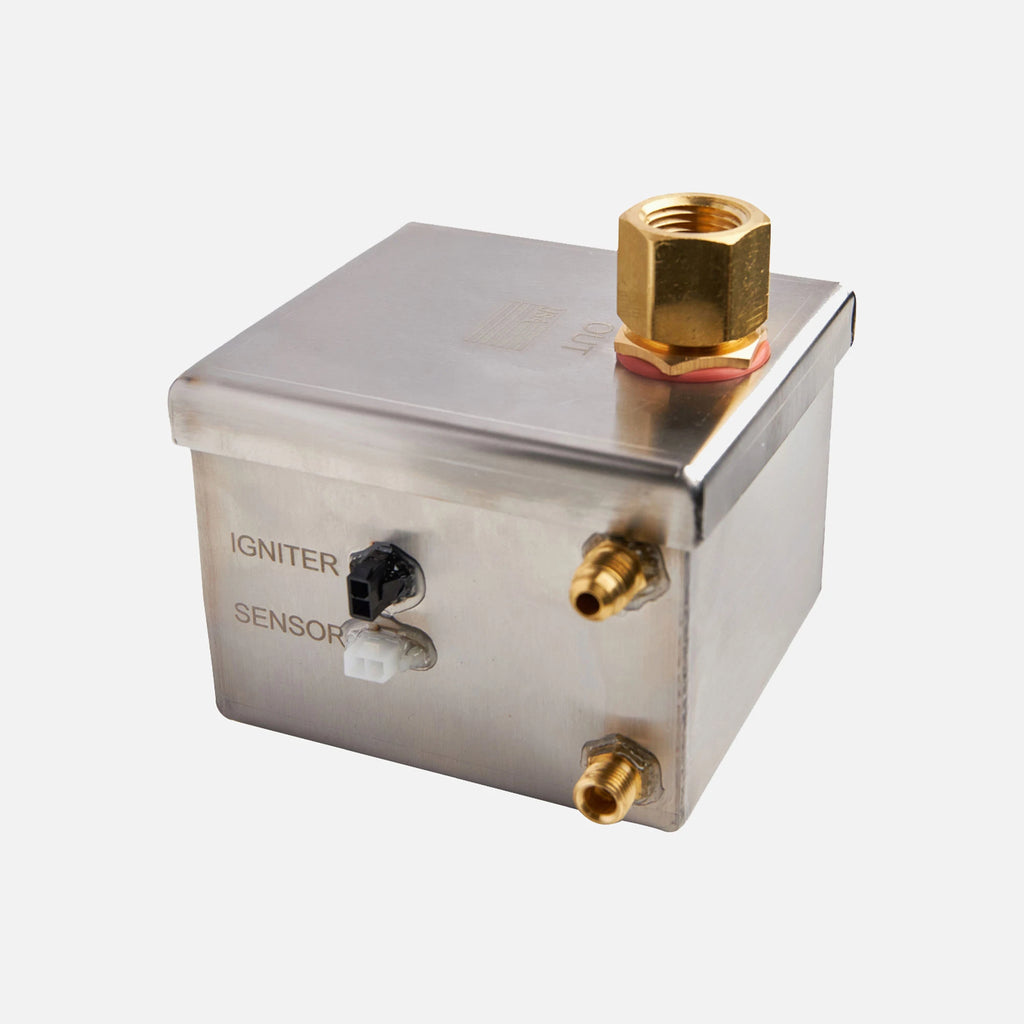

"Field Serviceable AWEIS High Capacity with 18"" Field Serviceable Pilot Burner

The AWEIS (All Weather Electronic Ignition System) High Capacity 30VDC variant is the industry’s leading fire feature ignition solution, built for commercial-grade performance and unmatched reliability. This fully automated system is specifically engineered to deliver 510,000 BTUs, making it the ideal choice for large fire bowls and fire pits. Designed to withstand any climate, the AWEIS provides consistent ignition, superior wind resistance, and intelligent flame monitoring in a compact, easy-to-install 30VDC configuration.

Features

• High Capacity Performance: Rated for 510,000 BTU to support large-scale fire installations.

• Commercial-Grade Reliability: Field-serviceable ignition system designed for long-term performance in exposed environments.

• 30VDC Power Configuration: Engineered for DC power applications (power supply sold separately).

• Advanced Safety: Features integrated flame sensing, high wind resistance, and automatic safety shutoff.

• Versatile Compatibility: Available for use with either Natural Gas or Liquid Propane.

• Flexible Installation: Multiple pilot burner lengths available (12″, 18″, 24″, or 30″ with extensions).

Specifications Each High Capacity 30VDC AWEIS includes a Commercial Grade Pilot Burner Assembly (CGPBA), ignition control module, heat deflector shield, and installation instructions.

• BTU Capacity: High Capacity (510,000 BTU)

• Power Option: 30VDC

• Gas Compatibility: Natural Gas or Liquid Propane

• Pilot Burner Options: 12″, 18″, 24″, 30″ (Extensions available)

Daisy Chaining For multi-feature installations, the 30VDC High Capacity AWEIS units can be daisy-chained to share power from a single source, allowing for synchronized ignition while minimizing wiring complexity.

• 30VDC support: Fully compatible with daisy chain configurations.

• Unit Requirements: Each unit requires 50VA—ensure your power supply is rated accordingly.

• Chain Limit: To preserve performance and comply with the warranty, a maximum of three (3) AWEIS units can be chained together.

Refer to the official wiring diagram and instructions provided by Fire by Design for full installation instructions and safety guidelines.
